Gigabyte GA-7ZXE Socket A Motherboard w/On-Board Sound
+ AMD Duron 1300 MHz (1.3 GHz) CPU
+ 256 MB PC133 168pin SDRAM
This motherboard is in a very good working condition, with Accessories in original box !! All items are tested and works.
I am selling this because I have finished my Studies in UK and going back to my home country this summer.
Please have a look to my other items that currently selling in Ebay. THX !!
This auction comes with following items :

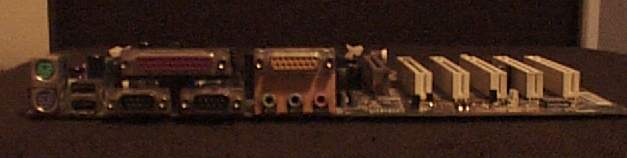

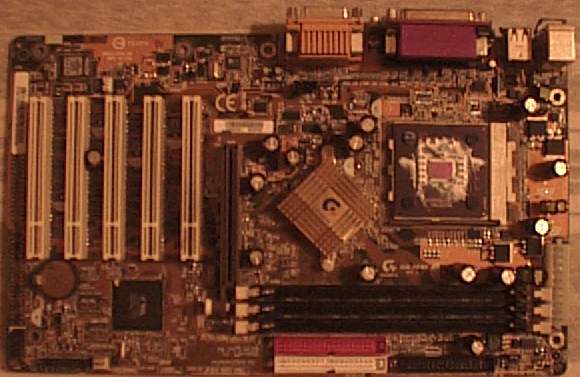

1 x Gigabyte GA-7ZXE Socket A Processor Motherboard

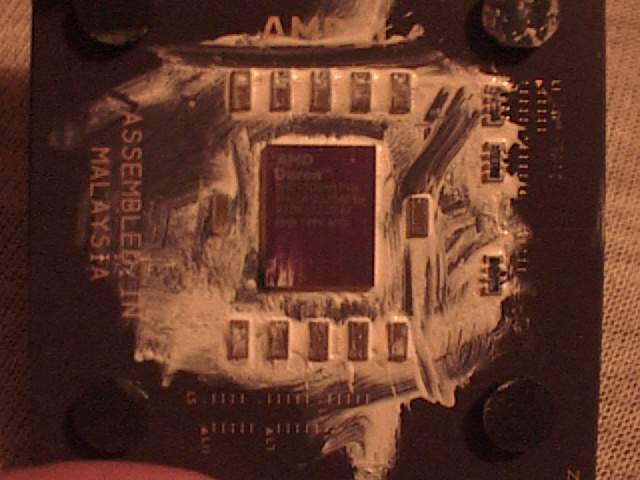

1 x AMD Duron 1300 MHz (1.3 GHz) CPU [ 200 MHz FSB ]

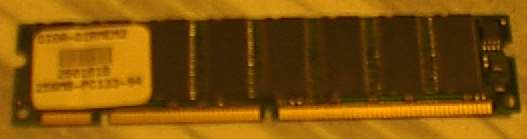

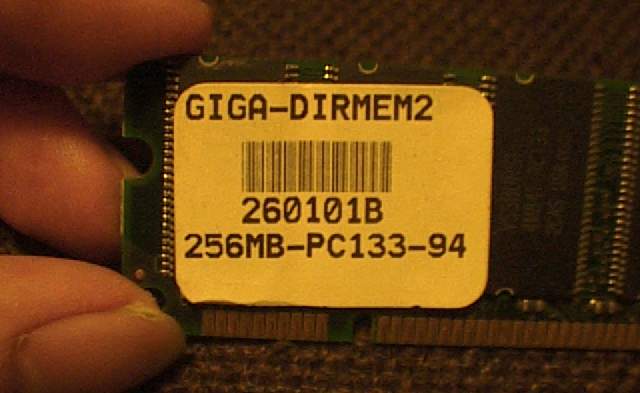

1 x 256 MB PC133 168pin SDRAM
2 x IDE cable
1 x Floppy Cable
1 x Installation CD-ROM for motherboard driver & utility
1 x 7ZXE user's manual

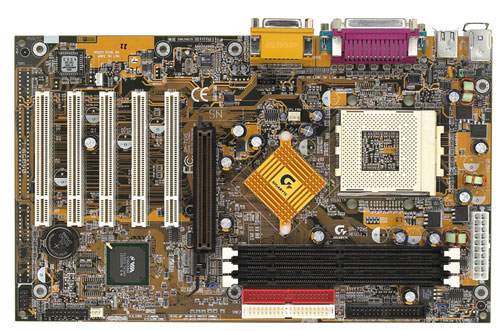

Model Number : GIGABYTE GA-7ZXE
Specification:
CPU :
* AMD Athlon/Duron (K7) Socket A Processor
* FSB 200/266MHz, 256K/64K L2 cache on die
* Support Duron 600MHz to AthlonXP 2100+ or Faster
* AUTO detect CPU voltage
Chipset :
* VIA VT8363A (KT133A) North bridge
* VIA VT82C686B PCI Super-I/O Integrated
Memory :
* 3 x 168-pin DIMM sockets
* Supports PC-100/PC-133 SDRAM and VCM SDRAM
* Supports up to 1.5GB Capacity
Expansion Slots :
* 1 AGP slot supports 4X mode & AGP 2.0 compliant
* 5 PCI slots supports 33MHz & PCI 2.2 compliant
On-Board IDE :
* Supports UDMA 33/ATA 66/ATA 100) IDE & ATAPI CD-ROM
* 2 IDE bus master (UDMA 33/ATA 66/ATA 100) IDE ports for up to 4 ATAPI devices
I/O Peripherals :
* 1 x Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88M bytes
* 1 x Parallel ports supports Nomal/EPP/ECP mode
* 2 x Serial ports (COM A and COM B)
* 4 x USB ports
* 1 x IrDA connector for IR
* PS/2 Keyboard interface and PS/2 Mouse interface
On-Board sound :
* AC ' 97 CODEC with Line In / Line Out / Mic In / CD In / Game port
Form Factor :
* ATX , 4 layer PCB (30.4*18.3cm)
Hardware Monitoring :
* System voltage detect (Vcore,VDD ,Vcc,+12V)
* H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
* CPU/System fan revoltion & temperature detect
Addtional Features :
* Support Wake-on-LAN
* Includes 2 fan power connectors
* Poly fuse for keyboard over-current protection
* Support @BIOS and EasyTune III
I will ship to anywhere in the world!! Please see the info. below !! Thanks !!
Payment Methods :
1)Bank Wire Transfer(Direct credit money to my HSBC account)
2)Bank Draft or Personal cheque
3)Nochex
4)Paypal (Plus 3.6% surchage)
Shipping Cost :
1)UK--- 10.00 pounds P&P by Royal Mail Recorded delivery
2)International---Please email me for a quote.
Serious Bidders only !! Bidders with negative overall feedback rating please send me a email before placing your bid !! THX !!
For more specifications of this motherboard, please go to Gigabyte website
For more specifications of the AMD CPU, please go to AMD website
